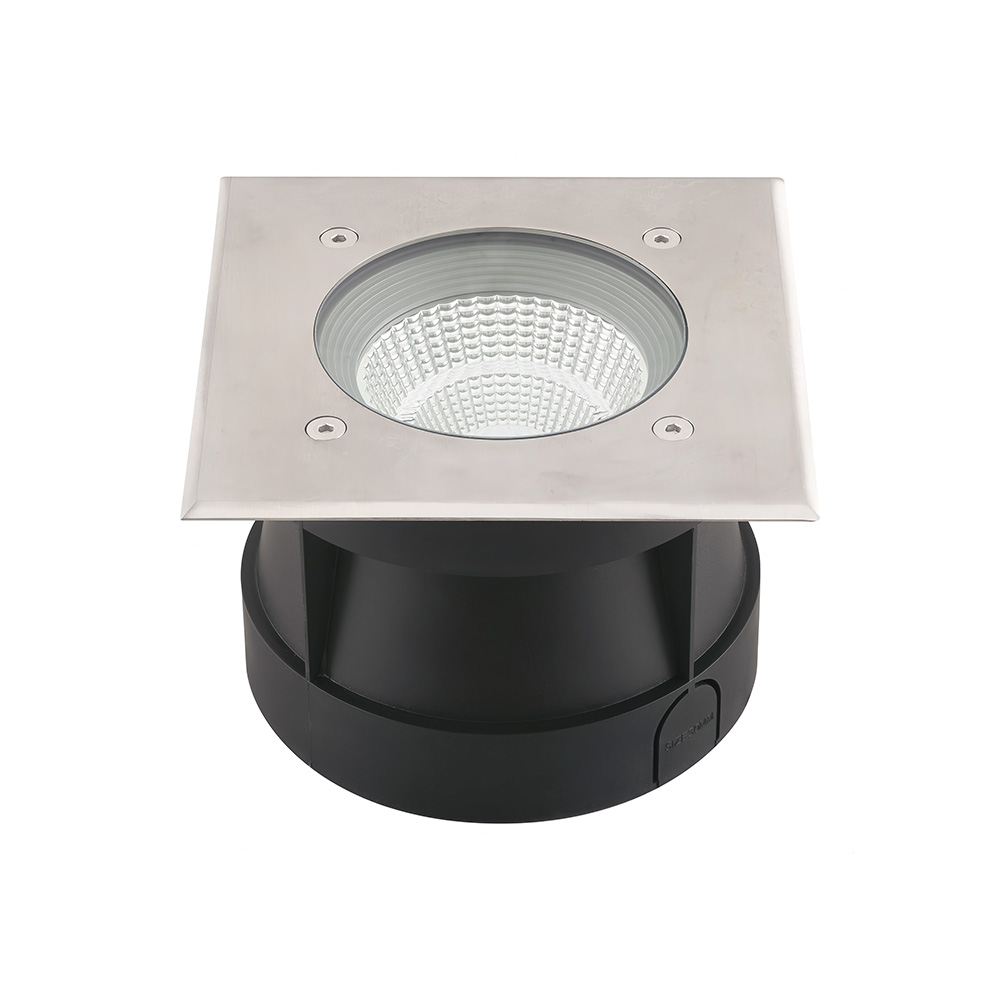

U-D94467

Neat Beams with Strong Guiding Power

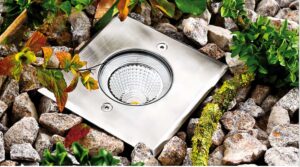

The square design ensures clear beam edges, forming regular rectangular or stripe beams. They are particularly suitable for embedding in slab seams, along walkways, or at the edges of flower beds, precisely outlining walking paths and enhancing nighttime safety.

Visually Restricted and Integrates into the Environment

Compared to round lights, the right-angled design of square in-ground lights better suits modern architecture and paving styles. Their strong lines are not obtrusive, blending naturally with materials such as faux stone bricks and cement floors, achieving a tranquil aesthetic of “seeing the light but not the lamp.”

Waterproof, Dustproof, and Long-Term Stability

Generally meeting IP67 or higher protection ratings, they possess excellent waterproof, dustproof, and corrosion-resistant properties, allowing for long-term stable operation under harsh weather conditions such as heavy rain and freeze-thaw cycles, making them suitable for complex outdoor environments.

General information			Electrical data
Colour	Stainless steel		Type of lamp	LED
Material	Stainless steel+Aluminum		Replaceable LED module	✓
Glass type	Tempered glass		Connected wattage	12~17 W

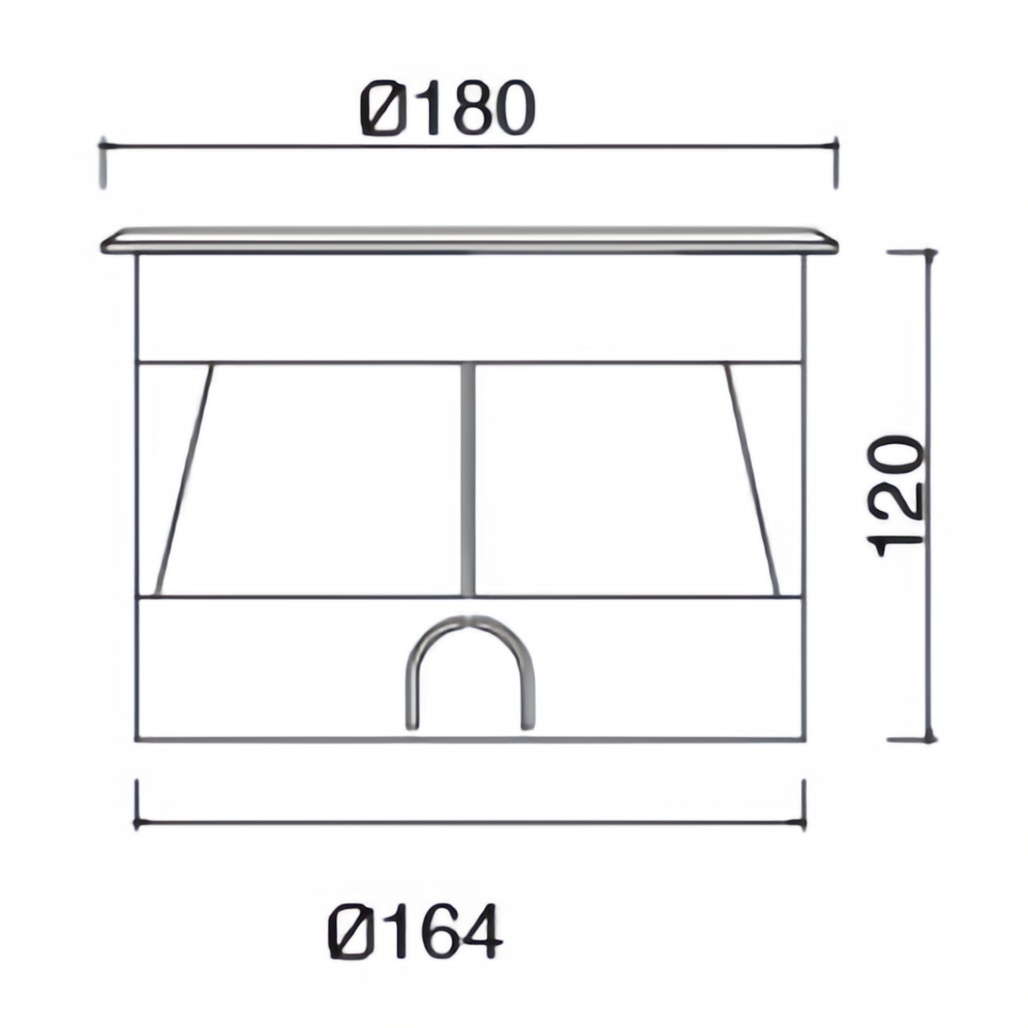

Frame dia	180 mm		Supply voltage	12 / 24 / 220 V
Height	120 mm		Protection class	I / III
Width	164 mm		Mains frequency	0/50-60 Hz
Mounting type	Ground Buried		Controllable	on/off
Lighting technology			Safety
Light colour	White		Protection class	IP 67
Colour temperature	3000~6500 K		Impact resistance	IK10
Luminaire luminous flux	1100~1800 lm		Min. opearting temp	-20°C
Colour rendering index	80		Max. opearting temp	+40 °C
Beam Angle	10°~100°		Load capacity	1,000 kg
Chip Brand	Cree		RoHs certification	✓
Adjustability	fixed		CE conformity	✓



FAQ

Q1: Can I have a sample order for LED light?

A1: Yes, we welcome sample order for test to check quality. Mixed samples are acceptable.

Q2:Do you offer guarantee for the products ?

A2: Yes,we offer 2 years warranty to our products.

Q3: Do you provide OEM and ODM product?

A3: We can offer OEM&ODM Service.meet your special needs.

Q4: What’s the delivery time?

A4: Within 15-30days.
