High Brightness & High Lumen Density
COB (Chip-on-Board) technology integrates multiple LED chips densely onto a substrate, achieving higher light output per unit area, making it suitable for outdoor landscape scenarios requiring strong illumination.
Uniform Light Distribution
COB is a surface light source, providing continuous, grain-free light emission with natural light transitions. It effectively avoids the shadows and glare problems of traditional SMD LEDs, improving visual comfort.
Energy Efficient & Eco-Friendly
It provides high brightness while consuming less power, with a luminous efficacy of over 110 lm/W, resulting in significant energy savings, and contains no harmful substances such as mercury.
| General information | Electrical data | |||
| Colour | Stainless steel | Type of lamp | LED | |
| Material | Stainless steel+Aluminum | Replaceable LED module | ✓ | |
| Glass type | Tempered glass | Connected wattage | 12 ~ 24W | |

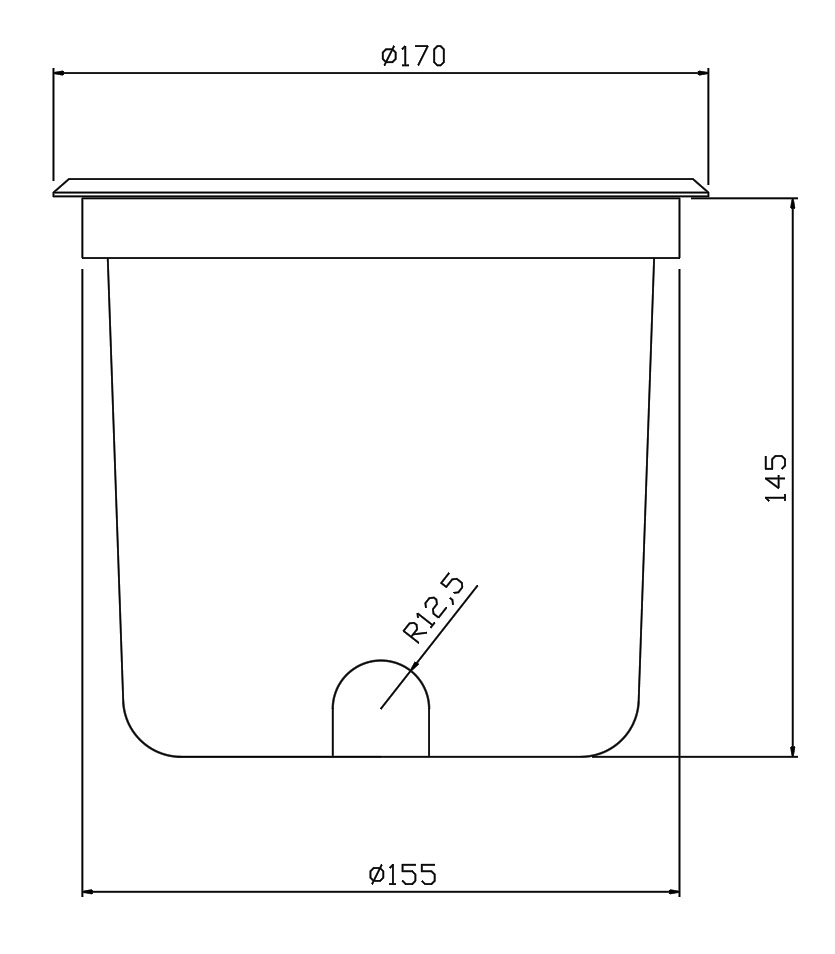

| Frame dia | 170 mm | Supply voltage | 12 / 24 / 220 V | |
| Height | 145 mm | Protection class | I / III | |
| Width | 155 mm | Mains frequency | 0/50-60 Hz | |
| Mounting type | Ground Buried | Controllable | on/off | |
| Lighting technology | Safety | |||
| Light colour | White | Protection class | IP 67 | |
| Colour temperature | 3000~6500 K | Impact resistance | IK10 | |
| Luminaire luminous flux | 1100~2600 lm | Min. opearting temp | -20°C | |
| Colour rendering index | 80 | Max. opearting temp | +40 °C | |
| Beam Angle | 10°~100° | Load capacity | 1,000 kg | |
| Chip Brand | Cree | RoHs certification | ✓ | |
| Adjustability | fixed | CE conformity | ✓ |
FAQ
Q1: Can I have a sample order for LED light?
A1: Yes, we welcome sample order for test to check quality. Mixed samples are acceptable.
Q2:Do you offer guarantee for the products ?
A2: Yes,we offer 2 years warranty to our products.
Q3: Do you provide OEM and ODM product?
A3: We can offer OEM&ODM Service.meet your special needs.
Q4: What’s the delivery time?
A4: Within 15-30days.
