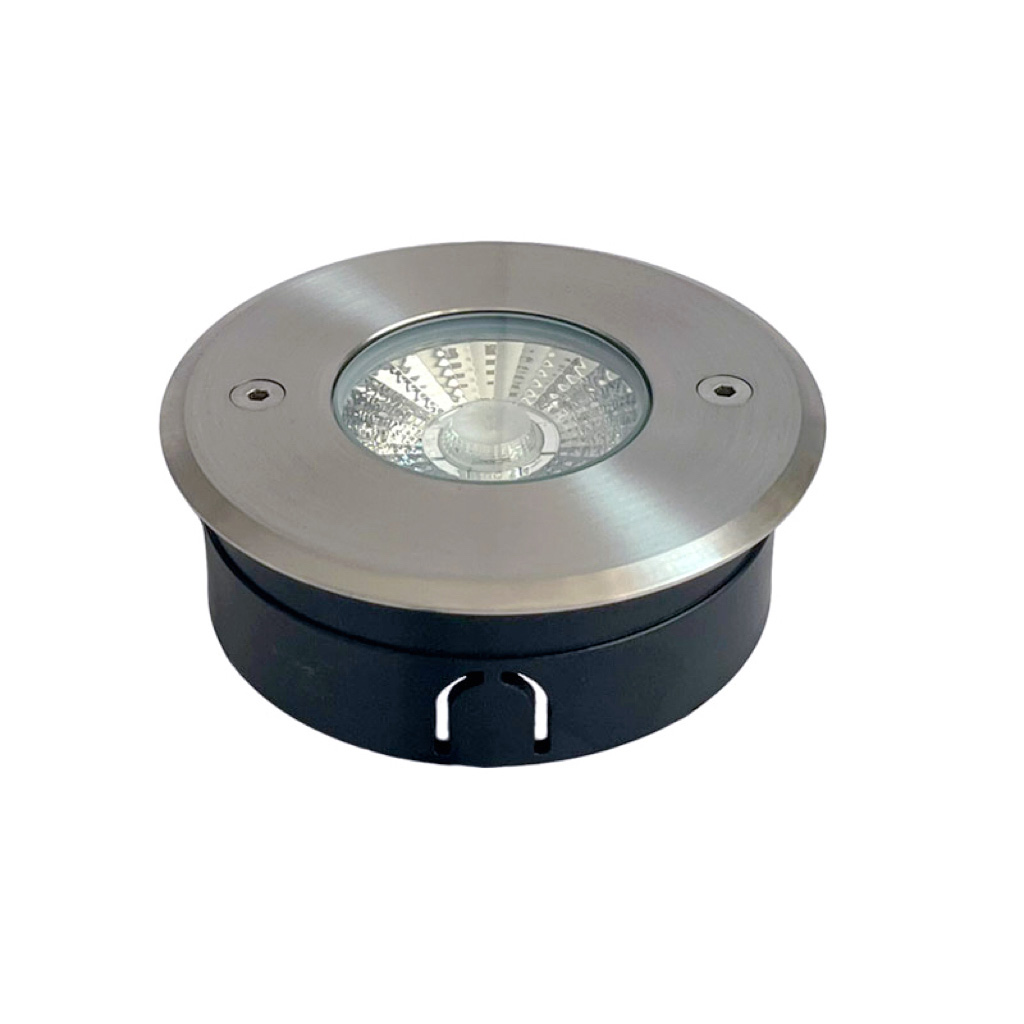

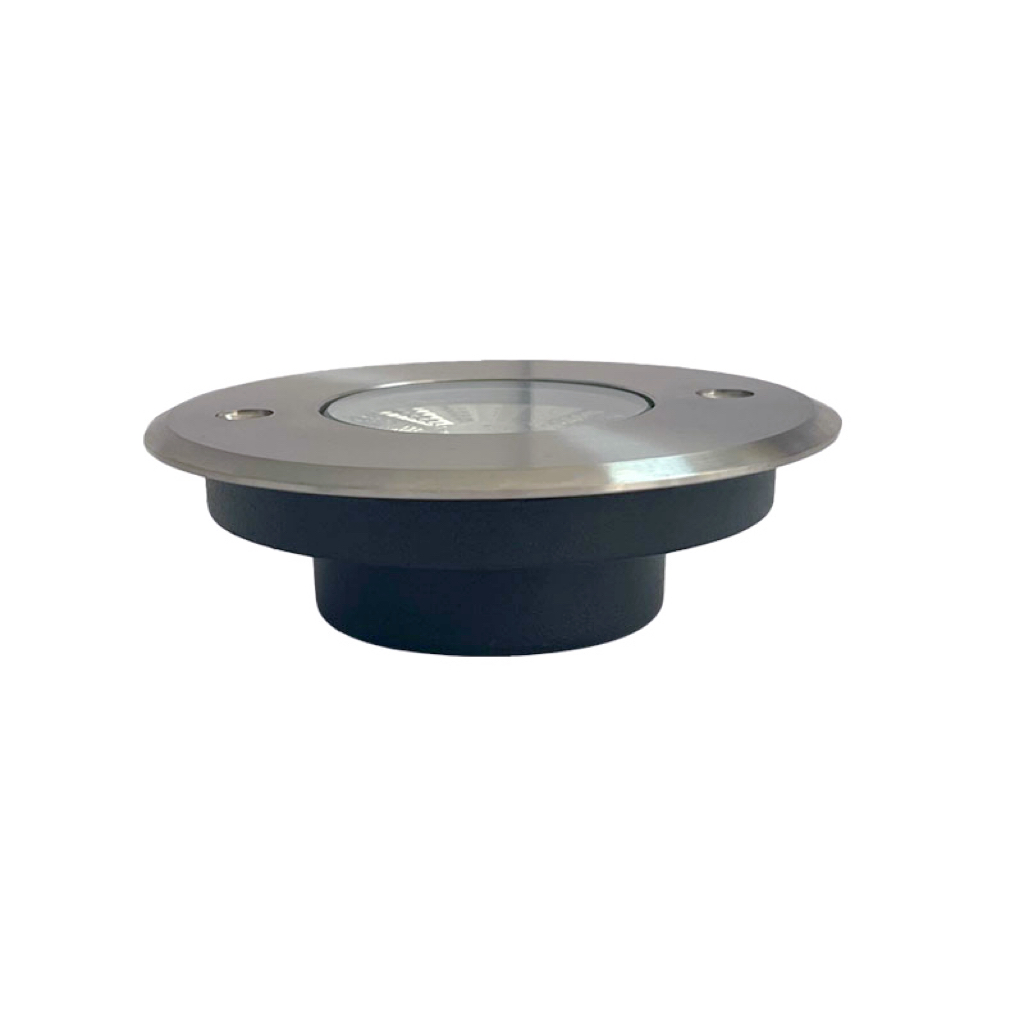

U-D91146

Extreme Concealment, Visually Unobtrusive

With a thickness as low as 35mm, they are flush with stone and tile surfaces after being embedded in the ground, completely invisible during the day and preserving the overall aesthetic of the ground, truly achieving “seeing the light but not the lamp.”

Simple Installation, Strong Adaptability

No deep trenching or large-scale construction is required; they can be directly embedded in narrow spaces such as brick joints, wood flooring, and stone slab seams, significantly reducing the difficulty and cost of renovations.

Safe, Energy-Saving, and Long Lifespan

Mostly using 12V/24V low-voltage power supply for enhanced safety; the LED light source has a lifespan of over 50,000 hours, low energy consumption, and virtually no need for frequent replacements.

General information			Electrical data
Colour	Stainless steel		Type of lamp	LED
Material	Stainless steel+Aluminum		Replaceable LED module	✓
Glass type	Tempered glass		Connected wattage	6 W
Frame dia	110 mm		Supply voltage	24 /V
Height	35 mm		Protection class	III
Width	98 mm		Mains frequency	0/50-60 Hz
Mounting type	Ground Buried		Controllable	on/off
Lighting technology			Safety
Light colour	White		Protection class	IP 67
Colour temperature	3000~6500 K		Impact resistance	IK10
Luminaire luminous flux	600 lm		Min. opearting temp	-20°C
Colour rendering index	80		Max. opearting temp	+40 °C
Beam Angle	10°~100°		Load capacity	1,000 kg
Chip Brand	Cree		RoHs certification	✓
Adjustability	fixed		CE conformity	✓

FAQ

Q1: Can I have a sample order for LED light?

A1: Yes, we welcome sample order for test to check quality. Mixed samples are acceptable.

Q2:Do you offer guarantee for the products ?

A2: Yes,we offer 2 years warranty to our products.

Q3: Do you provide OEM and ODM product?

A3: We can offer OEM&ODM Service.meet your special needs.

Q4: What’s the delivery time?

A4: Within 15-30days.
