U-D40951

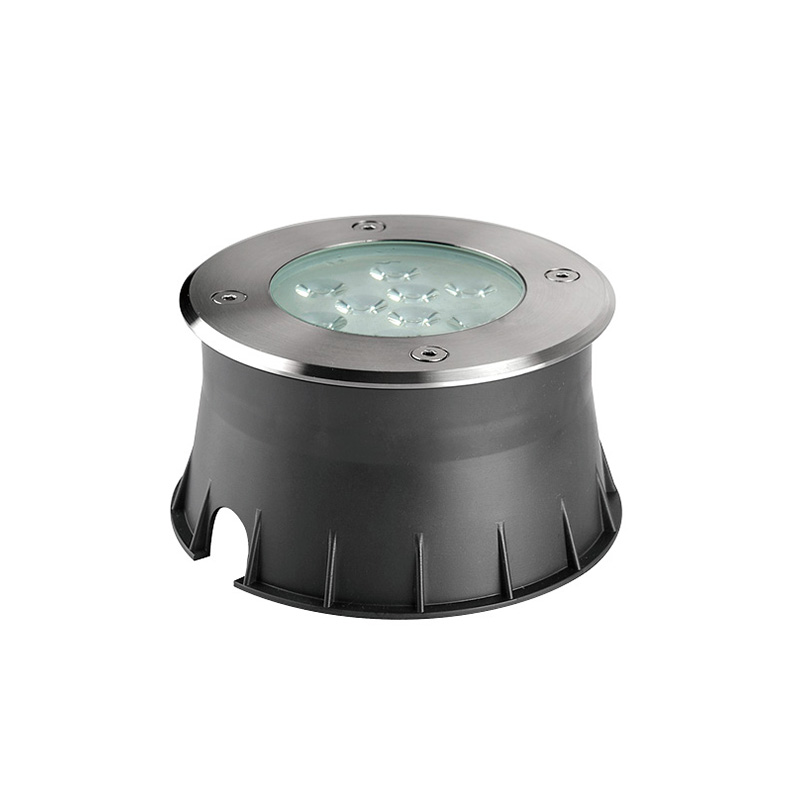

Concealed Installation, Aesthetically Pleasing Integration

Completely submerged in the water/pool body, the light fixture remains unexposed, preserving the overall visual appeal of the water feature. Its simple and natural design makes it suitable for various landscape pools, fountains, and water features.

Strong Protection, Safe and Durable

Possessing high standards of waterproofing, pressure resistance, and corrosion resistance, it can withstand long-term underwater immersion, endures complex outdoor climates, has a low failure rate, and a long service life.

Excellent Lighting Effect, Prominent Atmosphere

The light projects upwards from underwater, creating rich layers of light and shadow that outline the water feature and create a nighttime atmosphere; the stable light angle is not easily affected by water flow or debris.

General information			Electrical data
Colour	Stainless steel		Type of lamp	LED
Material	Stainless steel		Replaceable LED module	✓
Glass type	Tempered glass		Connected wattage	9×1 W

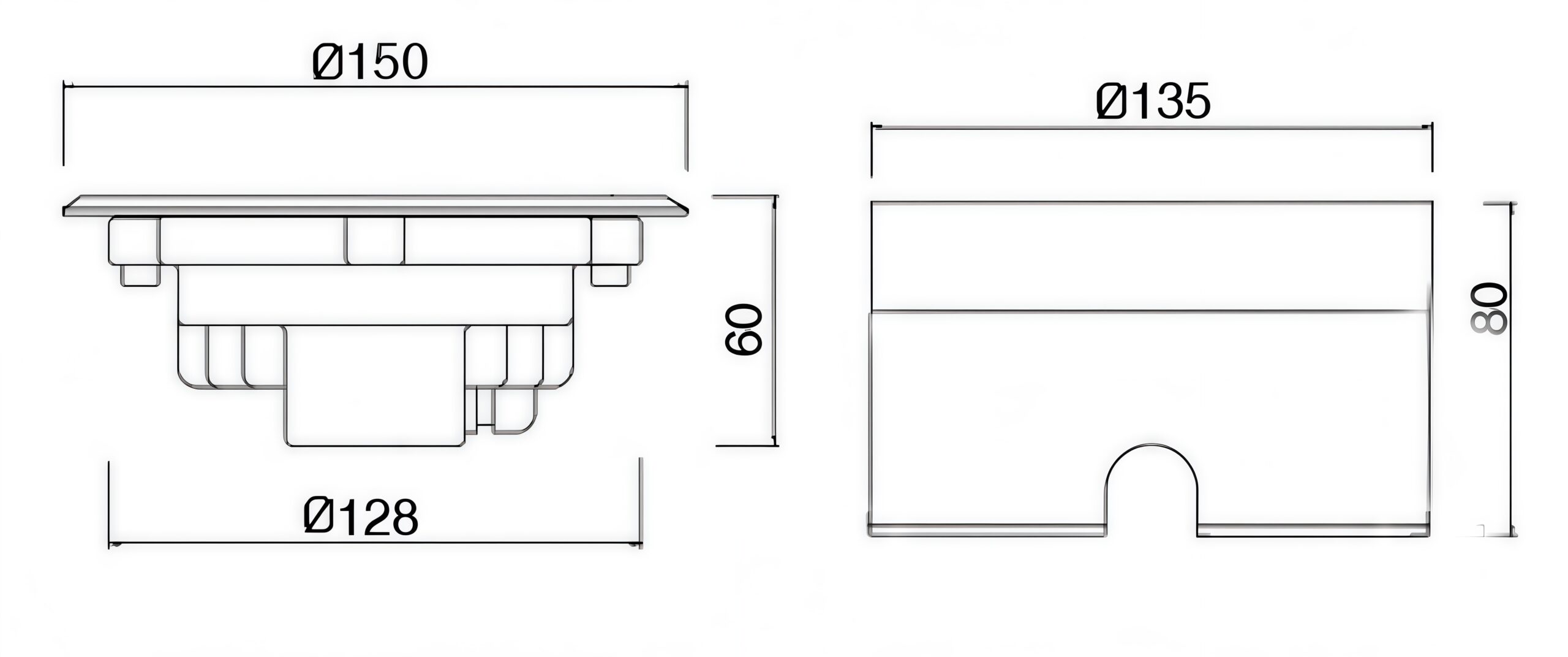

Frame dia	150 mm		Supply voltage	12 / 24 V
Height	80 mm		Protection class	III
Width	135 mm		Mains frequency	0/50-60 Hz
Mounting type	Ground Buried		Controllable	on/off
Lighting technology			Safety
Light colour	White		Protection class	IP 68
Colour temperature	3000~6500 K		Impact resistance	IK10
Luminaire luminous flux	720 lm		Min. opearting temp	-20°C
Colour rendering index	80		Max. opearting temp	+40 °C
Beam Angle	10°~100°		Load capacity	1,000 kg
Chip Brand	Cree		RoHs certification	✓
Adjustability	Fixed		CE conformity	✓

FAQ

Q1: Can I have a sample order for LED light?

A1: Yes, we welcome sample order for test to check quality. Mixed samples are acceptable.

Q2:Do you offer guarantee for the products ?

A2: Yes,we offer 2 years warranty to our products.

Q3: Do you provide OEM and ODM product?

A3: We can offer OEM&ODM Service.meet your special needs.

Q4: What’s the delivery time?

A4: Within 15-30days.
