U-D3W0555

Waterproof and dustproof, adaptable to harsh environments

The U-Dawn spotlight boasts an IP65 or higher protection rating, effectively resisting rain, dust, and UV radiation. Its die-cast aluminum alloy shell and high-temperature electrostatic powder coating process ensure aging resistance and corrosion resistance, guaranteeing long-term stable operation in outdoor environments with large day-night temperature differences and high humidity.

LED light source, energy-saving and long lifespan

Utilizing high-efficiency LED chips, it achieves high photoelectric conversion efficiency and low power consumption (3-12W) while delivering high brightness output. Its average lifespan reaches 30,000 to 50,000 hours, far exceeding traditional halogen lamps, significantly reducing replacement frequency and maintenance costs.

Compact size, flexible installation and lighting

The U-Dawn spotlight is small and lightweight, supporting various installation methods such as recessed, ground-mounted, and wall-mounted, suitable for diverse scenarios such as courtyards, walkways, landscape trees, and building facades. The beam angle is adjustable (e.g., ≤25°) to achieve precise projection, highlight texture details, and create a rich and layered nighttime landscape effect.

General information			Electrical data
Colour	Black/White/Dark grey		Type of lamp	LED
Material	Aluminium		Replaceable LED module	✓
Glass type	Tempered glass		Connected wattage	3~6W

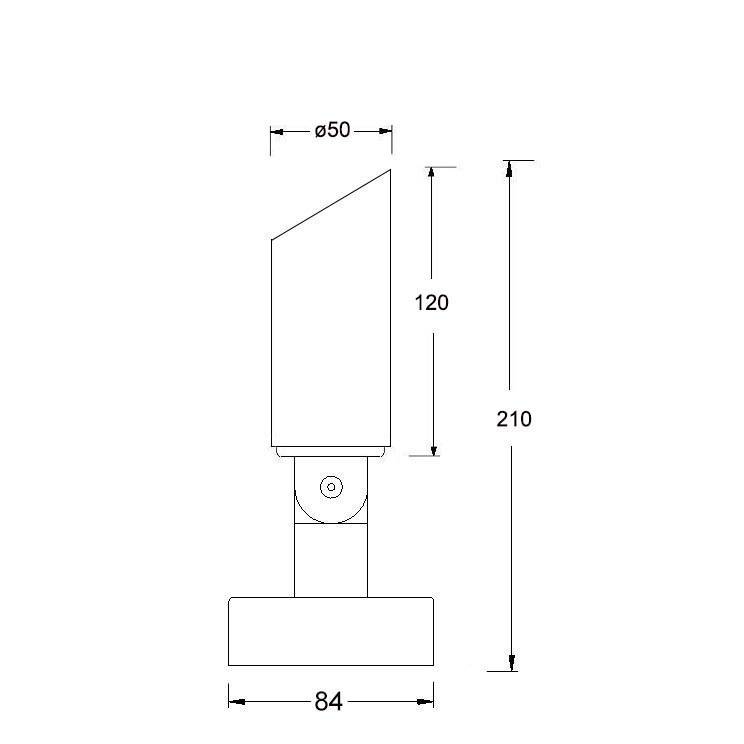

Width	50 mm		Supply voltage	12 / 24 / 220 V
Height	120 mm		Protection class	I / III
Depth	84 mm		Mains frequency	0/50-60 Hz
Mounting type	Surface  mounted		Controllable	on/off
Lighting technology			Safety
Light colour	White		Protection class	IP 65
Colour temperature	3000~6500 K		Impact resistance	IK08
Luminaire luminous flux	300~700 lm		Min. opearting temp	-20°C
Colour rendering index	80		Max. opearting temp	+40 °C
Beam Angle	10°~100°		Load capacity	1,000 kg
Chip Brand	Cree		RoHs certification	✓
Adjustability	rotatable and swivellable		CE conformity	✓

FAQ

Q1: Can I have a sample order for LED light?

A1: Yes, we welcome sample order for test to check quality. Mixed samples are acceptable.

Q2:Do you offer guarantee for the products ?

A2: Yes,we offer 2 years warranty to our products.

Q3: Do you provide OEM and ODM product?

A3: We can offer OEM&ODM Service.meet your special needs.

Q4: What’s the delivery time?

A4: Within 15-30days.
